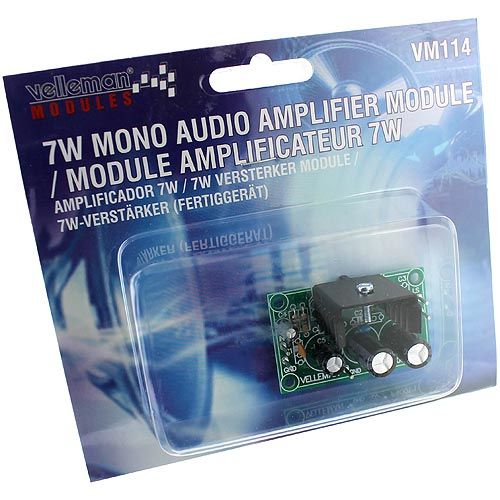

Assembled 7W Mono Amplifier - Image one
Share this product:
by Velleman
Item#: 14925
There are no customer reviews for this product. Be the first one to write one!
This small amplifier is capable of delivering 4Wrms at 4ohms. The IC is completely thermally and short-circuit protected, and a conventional direct current can be connected as supply. Use for science projects, hobby projects and more.
Specifications:
- 7W mono amplifier
- Music power output: 7W/4ohm
- RMS output: 3.5W/4ohm or 2W/8ohm
- Total harmonic distortion: 0.05% (1W/1kHz)
- Frequency response: 20Hz to 20kHz (-3dB)
- Signal/noise ratio: 86dB (A weighted)
- Input sensitivity: 40mV/150Kohm
- Overload and short-circuit protected
- Supply voltage: 15VDC (8 to 18VDC possible)
- Dimensions: 55X35mm (2.2" X 1.4")
Age:
14 +
14 +
Box Size:
6.00 x 5.25 x 1.50 inches
15.24cm x 13.34cm x 3.81cm
6.00 x 5.25 x 1.50 inches
15.24cm x 13.34cm x 3.81cm
Weight:
0 lb 2 oz
0.05 kg
0 lb 2 oz
0.05 kg
Warning:
CHOKING HAZARD
Small parts. Not for children under 3 yrs.
CHOKING HAZARD
Small parts. Not for children under 3 yrs.
Customer Reviews
There are no customer reviews for this product. Be the first one to write one!
