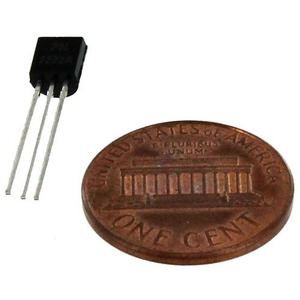

PN2222A Transistor - Image one
Share this product:
Item#: 14791
Use this transistor for your next electronics project. Great for a variety of applications (electrical science projects, hobby projects and more!)
| Specification | Value |
|---|---|
| Family | PN2222A |
| Product Width | 3.93mm (max) |
| Product Height | 4.7mm (max) |
| Product Length | 4.7mm (max) |
| Product Type | GP BJT |
| Category | Bipolar Small Signal |
| Configuration | Single |
| Maximum Power Dissipation | 625mW |
| Maximum Base Emitter Saturation Voltage | 1.2V@150mA; 2V@500mA |
| Maximum Collector Base Voltage | 75V |
| Maximum Collector Emitter Saturation Voltage | 0.3V@150mA; 1V@500mA |
| Number of Elements per Chip | 1 |
| Maximum Collector Emitter Voltage | 40V |
| Maximum Emitter Base Voltage | 6V |
| Maximum Operating Frequency | 300MHz(Min) |
| Maximum DC Collector Current | 1A |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | 150°C |
| Mounting | Through Hole |
| Type | NPN |
| Pin Count | 3 |
