Solar & Battery Fan DIY STEM Kit

This kit is an economical introduction to solar cells / photovoltaics (PV), DC motors and how fans work. Included are: solar cell, high-efficiency DC motor, two fan propellers, AA battery holder (for indoor activities) and on/off push-button switch.

The solar cell, DC motor and battery holder all come with already attached wire leads for easy connection (no soldering required!).

Simply connect the 2 wires of the motor to the 2 wires of the solar cell (just strip and twist them together), expose the solar cell to sunlight, and like magic the motor comes to life. For those cloudy days, instead of using the solar cell you can connect the included single AA battery holder to power the motor (great for indoor classroom activities!) Add the included on/off switch to your circuit!

Fan propellers are interchangable and are easy to attach to the motor by just pushing them onto the motor shaft. One of the included propellers has soft, touch-safe blades which is great for younger children.

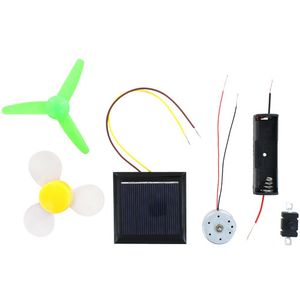

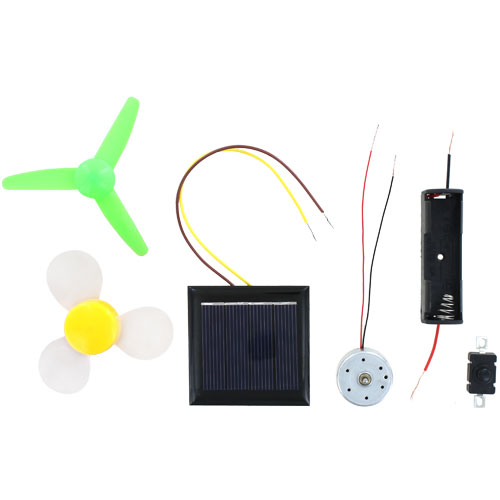

Included (6 items):

• SOLAR CELL: 2V 130mA polycrystalline solar cell (54x54mm) with pre-soldered wire leads
• DC MOTOR: High-efficiency DC motor (type 300 1V-6V) with attached wire leads (25mm diameter, 14mm thick with 2mm shaft - 100mA 8500 RPM at 1.5V)
• BATTERY HOLDER: Single AA battery holder with attached wire leads (battery is not included)
• SWITCH: On/off push button switch
• PROPELLER: Green 3-blade hard plastic propeller (80mm diameter)
• SOFT PROPELLER: Yellow-transparent 80mm 3-blade propeller with soft, touch-safe blades

Customer Reviews

---

  Great for science class
Mrs. Wexler from New York, NY
I got these for my 3rd grade class and everyone loved it! We were able to talk about various energy sources (solar, battery, etc.) and put these together. Fan works really well both on solar and on AA battery. It is nice that they included a switch and a safe blade fan. It was cheap enough that we could afford one kit for each student and they got to take it home.
