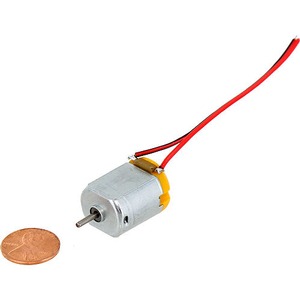

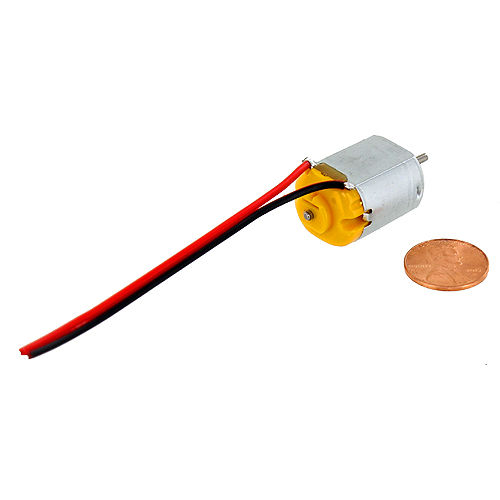

DC Motor 130 - 1.5-6V with leads

This affordable 1.5 to 6V DC motor is perfect for hobby projects. It comes with 15cm (approx 6 inches) long black and red wire leads already soldered for easy connection to your circuit. Use it with 1, 2 or 4 AA batteries in series (see battery holders below in related products) or with a solar cell.

Perfect for robotics projects, solar or battery powered cars, brush bots, fans and wind mills, and more.

If you are going to use this motor with a solar cell, make sure to get one that produces at least 200mA of current (see the best one in the related items to the right.)

NOTE: This DC motor has delicate connectors and open solder points. Do not pull on the wires! Protect the solder points at all times. Wires will easily come off. If you need a more robust motor see related products to the right.

Specifications:

• Type 130 motor
• Operating voltage: 1.5 to 6V DV
• Operating current: 160mA at 3V, 200mA at 6V
• Comes with 15cm (approx 6 inches) black and red wire leads for easy connection
• Motor Diameter: 20mm (curbed side) 15mm (flat side)
• Motor Height: 25mm
• Shaft diameter: 2.0 mm
• Shaft length : 9 mm
• Speed : 12500 RPM (at 6V)
• Weight: 17g
