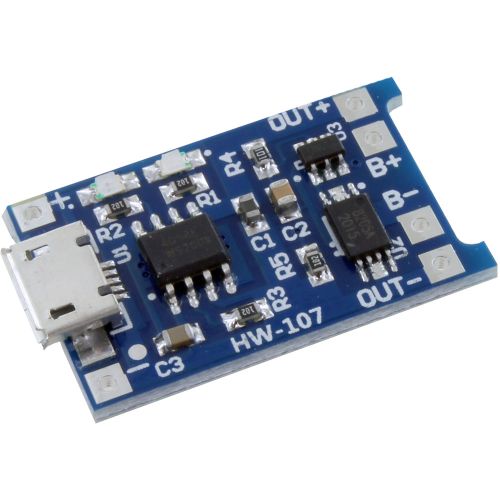

Single Lithium Battery Charge Controller 5V 1A - Image one

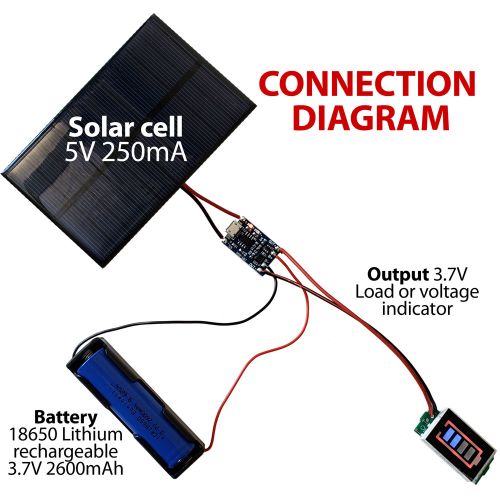

Single Lithium Battery Charge Controller 5V 1A - Image two
Share this product:
Item#: 17301
This handy little module board will allow you to charge a single 18650 Lithium rechargeable battery safely. You can connect a 5V solar cell or USB 5V DC source to start charging. The board also has a separate 3.7-4.2V output connection to place your load or battery level indicator.
See related items to buy the solar cell, 18650 Lithium battery, battery holder, and battery level indicator separately.
Specifications:
- Charging Input: 5V DC (micro USB or solder terminal for a solar cell or other voltage sources.)
- Output Voltage: 3.7 - 4.2V
- Charging Cutoff Voltage: 4.2V
- Maximum Charge Current: 1A
- Battery Over-discharge Protection Voltage: 2.5V
- Battery Over-current Protection Current: 3A
- Board size: 17.16 x 26.17 mm
- Soldering required
