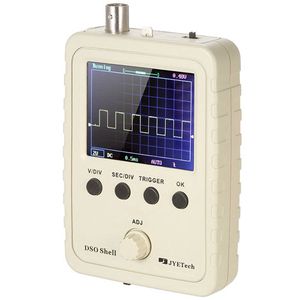

Digital Pocket Oscilloscope - 0-200KHz
by
xUmp.com
Item#: 16715
This handy digital oscilloscope displays and analyzes the waveform of electronic signals. In effect, the device draws a graph of the instantaneous signal voltage as a function of time. The meter measures signals from 0 to 200 KHz. Perfect for use in the lab or classroom.
Features:
-
Digital oscilloscope displays and analyzes the waveform of electronic signals
-
Measures from 0 to 200 KHz
-
Auto/Normal/Single trigger modes (rising or falling edge)
-
Freeze waveform display at any time with HOLD function
-
2.4 inch color LCD display with 320x240 resolution
-
High sensitivity: 5mV/div - 20V/div (higher than DSO138)
-
Perfect for use in the lab or classroom
-
Portable and versatile
Specifications:
-
Analog bandwidth: 0 - 200 KHz
-
Sensitivity range: 5mV/div - 20V/div
-
Max input voltage: 50V/div (1X probe)
-
Input impedance: 1Mohms/20pF
-
Resolution: 12 bits
-
Coupling modes: DC / AC / GND
-
Maximum real-time sampling rate: 1MSa/s
-
Time base range: 10us/div - 500s/div
-
Trigger modes: Auto, Normal and Single
-
Trigger position: Center or Buffer
-
Number of channels: 1
-
Supply voltage: 9V DC (power adapter not included - see related products)
-
Size: 115 x 75 x 22 mm (5.7 x 3.94 x 1.45 inches)
-
Weight: 89g / 3.14oz
Included:
-
Digital pocket oscilloscope
-
1X Probe
-
User guide
Age:
18 +
Box Size:
Weight:
0 lb 15 oz
0.43 kg
Warning:
CHOKING HAZARD
Small parts. Not for children under 3 yrs.
