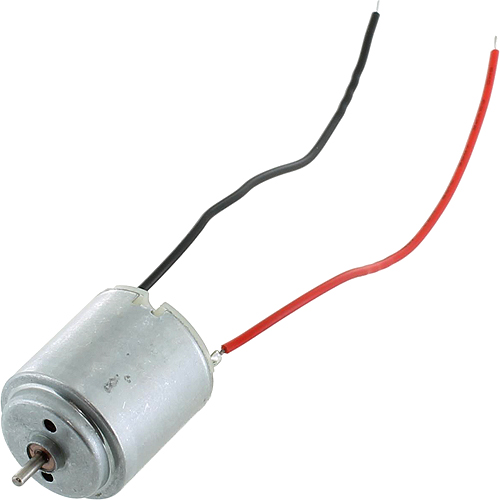

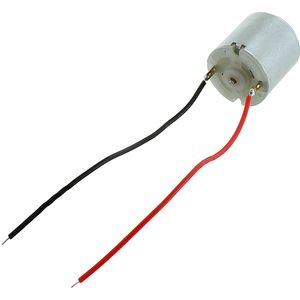

DC Motor 260 - 1.5-6V with leads
DC Motor 260 - 1.5-6V with leads
Share this product:
Item#: 16452
![5 star rating]()
12 customer reviews
![5 star rating]()
Nicholas from Kenosha, WI
Perfect replacement for the Frabill air pump.
![5 star rating]()
Undisclosed Verified Buyer
![5 star rating]()
Undisclosed Verified Buyer
![5 star rating]()
One to One match
TomM from US,OH,Dayton
Nothing but pleased with this motor. I needed this to replace fan motor, of all things a boot/shoe dryer. Other than I need to solder the leads, it was perfect match both in fit and performance.
![5 star rating]()
Dls from Arkansas
Used to replace bad motor in frabill bait container-worked great with no issues.
![4 star rating]()
Weak connection
Duane from Texas
I order these every year for a class project, but the wires that connect to the motor on the most recent order were incredibly fragile. Many of them just fell right off. I wish they would attach them better.
xUmp.com Reply: We apologize for this! The wires are very fragile on these motors and they have to be handled carefully. We use lead-free solder on these motors (to protect kids) which is a bit weaker than regular solder.
![5 star rating]()
As described
Mike from Madison, WI
Used this to replace a dead motor on a Frabill live bait air pump. Almost identical and works wells as a replacement motor.
![5 star rating]()
Great motor
Tony Medsker from Illinois
So glad I was able to find this! Great motor, great fast shipping company!
![5 star rating]()
Dale Pfeifer from Pennsylvania, USA
![5 star rating]()
Foot Rest
Dale from Minnesota
The motor worked like a charm. It drives and offset cam to vibrate a foot warmer. Happy customer
![5 star rating]()
Great!
Rae from USA, Lincoln, Nebraska
Great little product. Just right for the purpose,, Happy to have found this site.
![5 star rating]()
Jessica from Montana
These were great motors for the project that we did but many of the leads came off. We were able to reattach most of them without much efforts but others had to be altered.
12 customer reviewsThis reliable and affordable 1.5 to 6V DC motor is perfect for hobby projects. It comes with 4 inch (10cm) long black and red wire leads already soldered for easy connection to your circuit. Use it with 1, 2 or 4 AA batteries in series (see battery holders below in related products) or with a solar cell.
Perfect for robotics projects, solar or battery powered cars, brush bots, fans and wind mills, and more.
Specifications:
- Type 260 motor
- Operating voltage: 1.5 to 6V DC
- Optimum voltage: 3 to 6 V DC
- Comes with 4 inch (10cm) black and red wire leads for easy connection
- Motor size: 23.6 (diameter) x 29 (length) mm
- Shaft diameter: 2.0 mm
- Shaft length : 6 mm
- Idling current : 0.11 A ( Stall 1.8 A)
- Speed : 10000 RPM (at 6V)
- Weight: 28g
Gentle Handling Required:
These motors come with pre-soldered wires for your convenience. Please handle them with care, as excessive pulling, bending, or stress on the wires or solder point can result in breakage.
Age:
14 +
14 +
Approx. Ship Size:
2.00 x 1.50 x 1.00 inches
5.08cm x 3.81cm x 2.54cm
2.00 x 1.50 x 1.00 inches
5.08cm x 3.81cm x 2.54cm
Weight:
0 lb 1 oz
0.03 kg
0 lb 1 oz
0.03 kg
Warning:
CHOKING HAZARD
Small parts. Not for children under 3 yrs.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
CHOKING HAZARD
Small parts. Not for children under 3 yrs.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Customer Reviews
Nicholas from Kenosha, WI
Perfect replacement for the Frabill air pump.
Undisclosed Verified Buyer
Undisclosed Verified Buyer
One to One matchTomM from US,OH,Dayton
Nothing but pleased with this motor. I needed this to replace fan motor, of all things a boot/shoe dryer. Other than I need to solder the leads, it was perfect match both in fit and performance.
Dls from Arkansas
Used to replace bad motor in frabill bait container-worked great with no issues.
Weak connectionDuane from Texas
I order these every year for a class project, but the wires that connect to the motor on the most recent order were incredibly fragile. Many of them just fell right off. I wish they would attach them better.
xUmp.com Reply: We apologize for this! The wires are very fragile on these motors and they have to be handled carefully. We use lead-free solder on these motors (to protect kids) which is a bit weaker than regular solder.
As describedMike from Madison, WI
Used this to replace a dead motor on a Frabill live bait air pump. Almost identical and works wells as a replacement motor.
Great motorTony Medsker from Illinois
So glad I was able to find this! Great motor, great fast shipping company!
Dale Pfeifer from Pennsylvania, USA
Foot RestDale from Minnesota
The motor worked like a charm. It drives and offset cam to vibrate a foot warmer. Happy customer
Great!Rae from USA, Lincoln, Nebraska
Great little product. Just right for the purpose,, Happy to have found this site.
Jessica from Montana
These were great motors for the project that we did but many of the leads came off. We were able to reattach most of them without much efforts but others had to be altered.
